Precision Forging of Claw Pole for Automotive Generators


Automotive generators are crucial components of modern vehicles, ensuring the proper functioning of electrical systems and providing power to various components. One of the key elements of automotive generators is the claw pole, which plays a significant role in the overall performance of the generator. As the automotive industry evolves, so does the demand for high-quality and efficient components. In response to this need, CFS Forge has developed a unique and cutting-edge approach to manufacturing claw poles through precision forging.

What is Precision Forging?

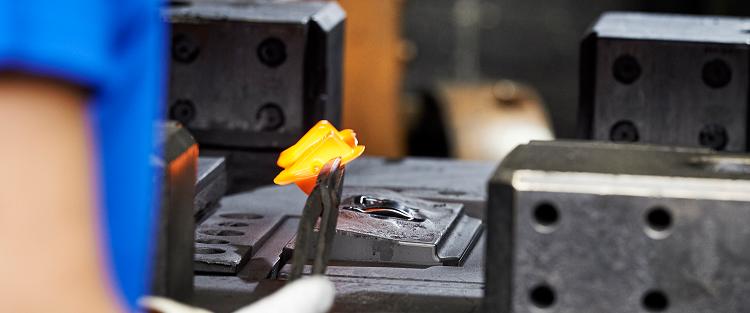

Precision forging

Precision forging is a manufacturing process that involves shaping metal parts by applying heat and pressure. This method differs from traditional forging in that it is capable of producing components with tighter tolerances, higher precision, and better surface finishes. Precision forging is often used for manufacturing components that demand exceptional quality, reliability, and performance, making it a perfect fit for the automotive industry.

The Precision Forging Process

The precision forging process for claw poles in automotive generators involves several steps to ensure a high-quality, reliable, and durable final product. The following are the key steps in the forging process:
  1. Material Selection: The initial step in the forging process is choosing the appropriate material for the claw pole. Typically, high-quality steel alloy is used due to its excellent mechanical properties and suitability for precision forging.
  2. Material Preparation: The selected material is then cut into suitable sizes, known as billets or bars, to be used in the forging process. These billets are thoroughly cleaned and inspected to ensure they meet the required standards.
  3. Heating: The billets are heated to a specific temperature to make them malleable and suitable for forging. This temperature varies depending on the material being used and the specific requirements of the claw pole design.
  4. Preforming: In some cases, a preforming step may be necessary to roughly shape the heated billets before they are placed in the forging die. This helps to reduce the amount of force needed during the forging process and increases the material's flowability.
  5. Forging: The heated billets are then placed into the forging die, which is designed to precisely shape the claw pole. The die is closed, and a hydraulic press or hammer applies pressure, forcing the material to fill the die cavity and take the shape of the claw pole.
  6. Trimming and Removal: After the forging process is complete, any excess material or flash is trimmed away from the forged claw pole. The newly formed claw pole is then removed from the die, either manually or using automated systems.
  7. Cooling and Inspection: The forged claw pole is allowed to cool gradually, ensuring that its mechanical properties are preserved. Once cooled, the claw pole undergoes a thorough inspection to check for any defects, dimensional accuracy, and overall quality.
  8. Heat Treatment: Depending on the material and specific requirements of the claw pole, a heat treatment process may be necessary to further enhance its mechanical properties, such as strength and hardness. Heat treatment processes may include annealing, quenching, and tempering.

Why Choose Precision Forging for Claw Pole Manufacturing?

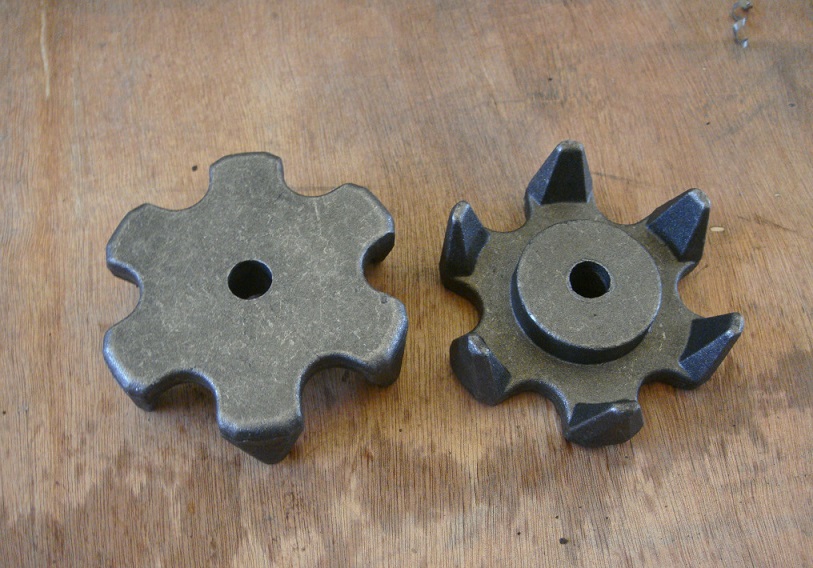

Precision Forging of Claw Pole for Automotive Generators

There are several reasons why precision forging is the ideal method for manufacturing claw poles for automotive generators:
  • High Precision and Accuracy: Precision forging produces components with tight tolerances and excellent dimensional accuracy. This ensures that the claw pole is manufactured to exact specifications, improving the overall performance and efficiency of the automotive generator.
  • Superior Surface Finish: The precision forging process results in a smoother surface finish compared to traditional forging methods. This not only improves the appearance of the claw pole but also reduces the need for additional machining and finishing processes, saving time and resources.
  • Enhanced Mechanical Properties: Precision forging enhances the mechanical properties of the metal, such as strength and ductility. This ensures that the claw pole can withstand the rigorous demands of the automotive environment and remain durable over time.
  • Cost-Effectiveness: Although precision forging may initially appear more expensive than traditional forging, the long-term benefits outweigh the initial costs. The reduction in additional machining and finishing processes, coupled with the improved quality and performance of the claw pole, makes precision forging a cost-effective choice for automotive manufacturers.

CFS Forge: A Leader in Precision Forging of Claw Poles for Automotive Generators

CFS Forge is a renowned manufacturer of precision forged components, specializing in the production of claw poles for automotive generators. With years of experience and a team of highly skilled professionals, CFS Forge has established itself as a leader in the precision forging industry.

Key benefits of working with CFS Forge for your claw pole manufacturing needs include:
  • Expertise: CFS Forge has a deep understanding of the precision forging process and the specific requirements of the automotive generator sector. This ensures that the claw poles produced are of the highest quality and meet the exact specifications of each client.
  • State-of-the-Art Facilities: CFS Forge operates state-of-the-art facilities, equipped with the latest precision forging technology and machinery. This enables them to produce claw poles with exceptional precision, accuracy, and quality.
  • Quality Assurance: CFS Forge places a strong emphasis on quality, implementing stringent quality control measures throughout the entire manufacturing process. From the selection of raw materials to the final inspection of finished products, every aspect of production is closely monitored to ensure the highest quality standards are met.
  • Customization: CFS Forge understands that every automotive generator project has unique requirements. As a result, they offer a range of customization options for their claw pole manufacturing services, allowing clients to tailor the end product to their specific needs.
  • Global Reach: With a strong presence in the global automotive industry, CFS Forge is well-positioned to meet the needs of clients from around the world. Their international network and established supply chain ensure seamless delivery of high-quality claw poles to automotive manufacturers worldwide.

Contact Us

Precision forging has revolutionized the manufacturing of claw poles for automotive generators, offering a range of benefits. CFS Forge is a leader in the forging industry, specializing in the production of claw poles for automotive generators. With a strong focus on quality, state-of-the-art facilities, and an experienced team of professionals, CFS Forge is the go-to choice for automotive manufacturers seeking top-notch claw poles to enhance the performance of their generators.

If you have any inquiry on forged claw poles, pls feel free to contact us!
